Professional manufacturer of grinding equipment and grinding equipment.

Grinder

Our ultra-fine friction grinding machine is equipped with special grinders,which produce overwhelmingly fine and round-shape particles of products. These grinders have 150kinds and over variations classified in material itself, material particle size, or ditch style. Besides, anti-bacterial grinders are added in our range which help keep good sanitary conditions at foodstuff industry. Thus our grinders can process any material.

haccp

MONPOROUS GRINDER

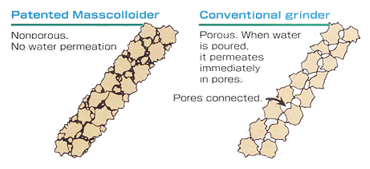

As previously mentioned briefly, conventional grinders have a porosity of about 40%. Accordingly, when raw food materials such as animal bones are triturated, the liquid containing nutrients such as protein enters the inner part of the grinder which promotes the growth of innumerable bacteria. Also sometimes these pores cause cracks of grinder due to uneven heat distribution or thermal stress. The Supermasscolloider solves these problems completely, there is no growth of bacteria and no crack due to thermal stress.
E

Sic
For soft material
(standard grindstone)

Antibacterial version available. For making pastes of vegetables,fruits,meat, sesame seeds, peanuts, pigments, plaster, sea weeds, soy beans, rice, Japanese horseradish, ginger,etc.

16#,24#(coarse) 46#(fine)

FC

Si3N4
For extra-hard material
For powdering or slurrying glass, minerals, medical material, plaster, pigments, antimony trisulfide, ink lead,calcium hydroxide

(Special fine grinding)

G-AC

Al2O3 <MKG-A>
Sic<MKG-C>

Forpulverizing and emulsifying fibrous material
Antibacterial version available.
For pulverizing corns,ginger,mustards, almonds, carbon,talc, silica, cellulose,etc., and for emulsifying grease,cosmetics,etc.

24#,46#(fine) 80#,120#(Ultra-fine)

FCW

Al2O3
For white material
For powdering or slurrying white naterials, including cosmetics,pigments and drinks.

(Special intermediate grinding)

D

C100% (dimond)
For hard materials
For powdering or slurrying egg shells,minerals, bones,metal oxide,fossil shells, zeolite, polymide fluororesin,etc.

40#. 60#(fine)

C

FcD60(quenched)
& SUS303

For preliminary grinding / Kneading powdery materials
For preliminary grinding of bones, wood chip, resin pellet, etc.,or for mixing/knead-ing pigments,etc

M

sus 304/316
For special materials
For powdering or slurrying medical materials,etc.

(Intermediate grinding)

B-AC

Al2O3 <MKB-A>
Sic<MKB-C>

For dry trituration
For powdering mugworts,herbs ,spices, minerals. powder tea leaves,chitosan, potassium sulfate.chlorella, nitric acid, etc

16#,24#(coarse) 46#,80#(fine) 120#,220# (ultra-fine)
